Integrate Snyk into Atlassian Open DevOps

Warren Marusiak headshot
Warren Marusiak

Senior Technical Evangelist

To demonstrate how to develop, deploy, and manage applications using Jira Software and various connected tools, our team created ImageLabeller, a simple demo application built on AWS that uses machine learning to apply labels to images.

This page covers how to integrate Snyk with Bitbucket. Before you begin, we recommend reading the Introduction to ImageLabeller page for context.

Connecting Bitbucket and Snyk

There are a couple of ways to work with Snyk in Bitbucket. The first is to enable the native Snyk integration to Bitbucket via the Security tab on your repository screen. The second is to add a Snyk step to a bitbucket-pipelines.yml file. There is no downside to doing both. The Synk integration in Bitbucket provides quick access to vulnerability data to anyone looking at the repository in Bitbucket. You can then click through to the Snyk website for additional information on each vulnerability found. The Snyk step in a bitbucket-pipelines.yml file enables automatic scanning on every commit in a pipeline.

Adding the Snyk integration to Bitbucket

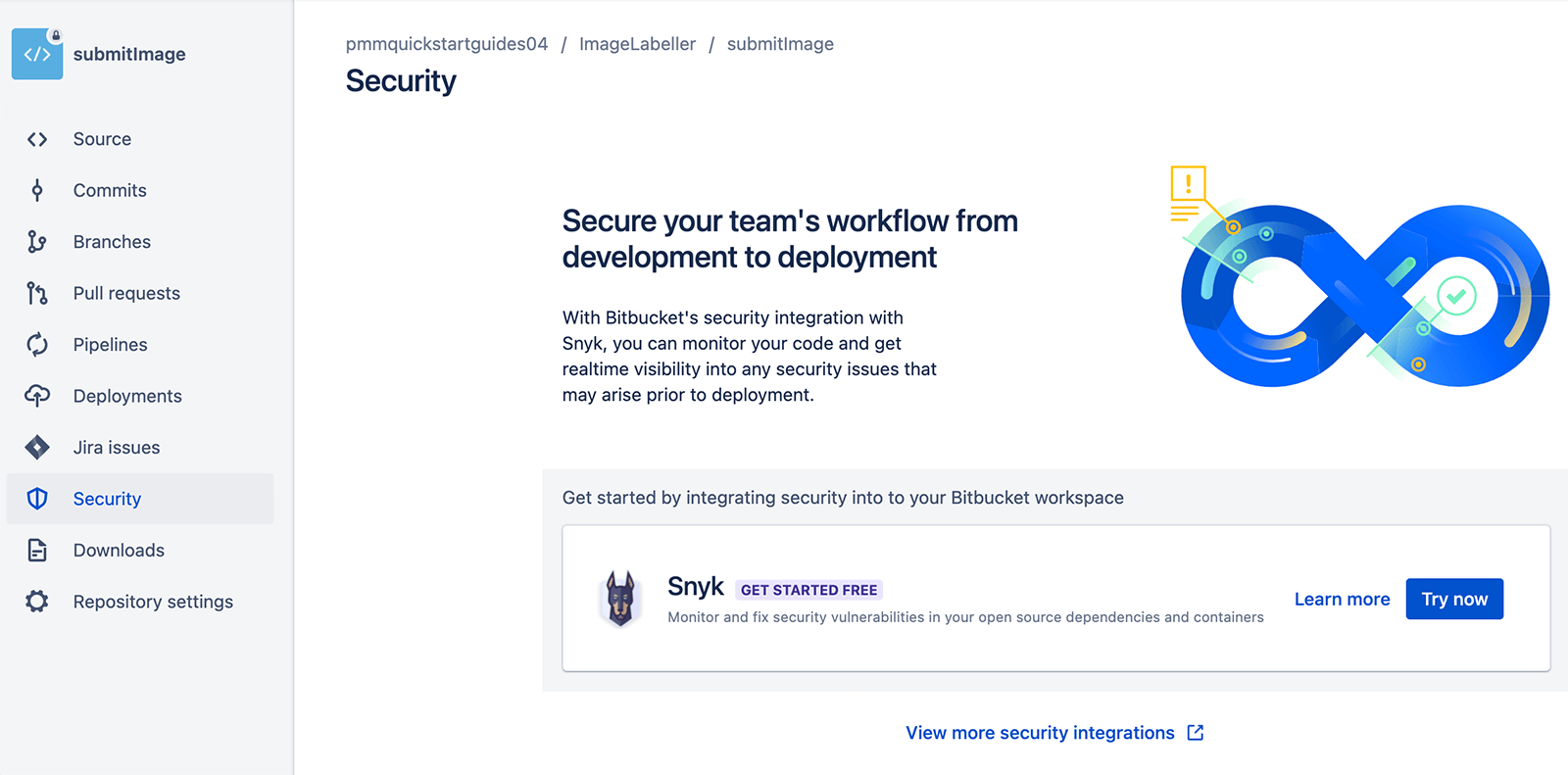

To add Snyk to a Bitbucket repository click on the Security tab, find the Snyk integration, then Try now.

Adding Snyk integration to Bitbucket image

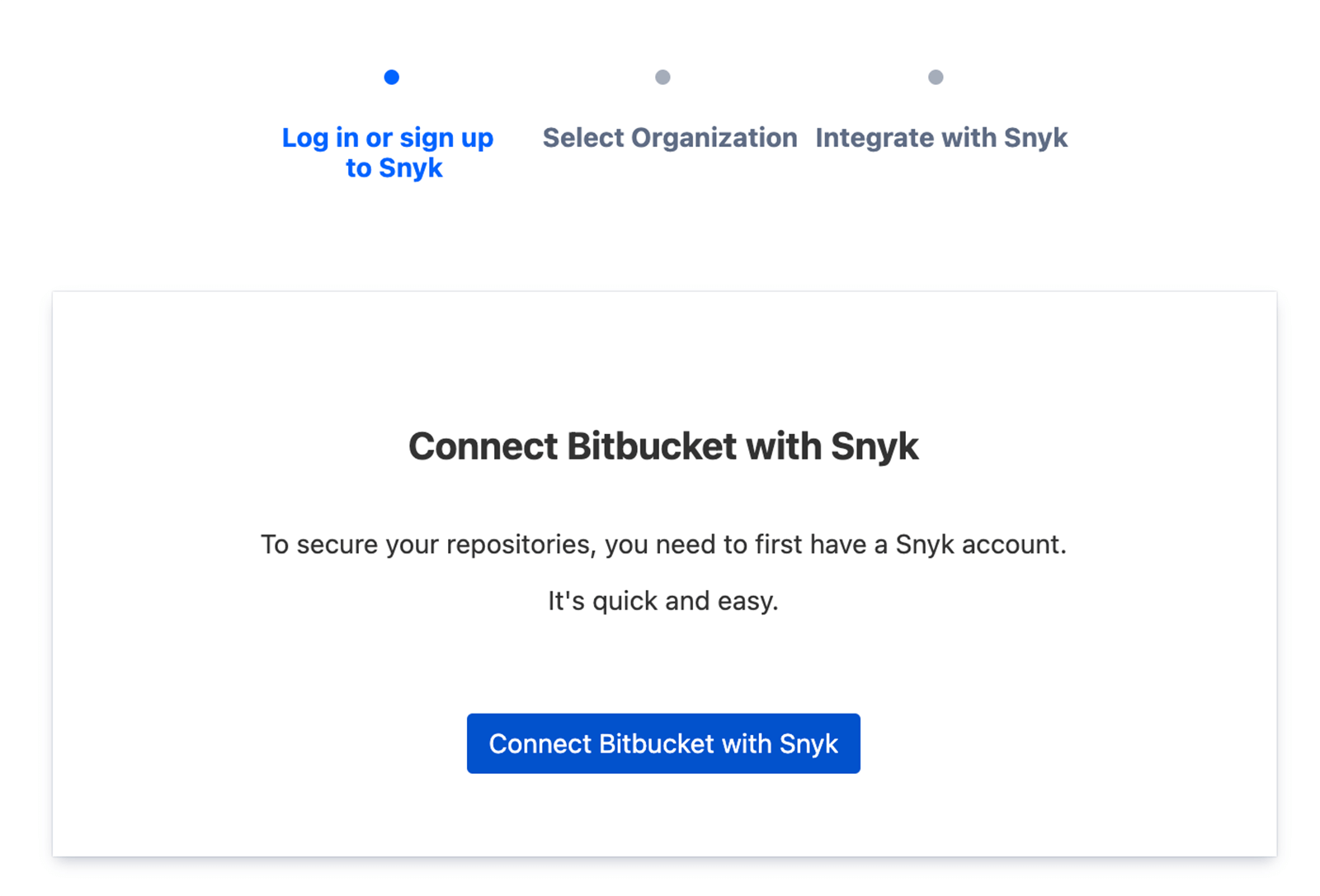

Grant access, and click Connect Bitbucket with Snyk.

Connect Bitbucket to Snyk

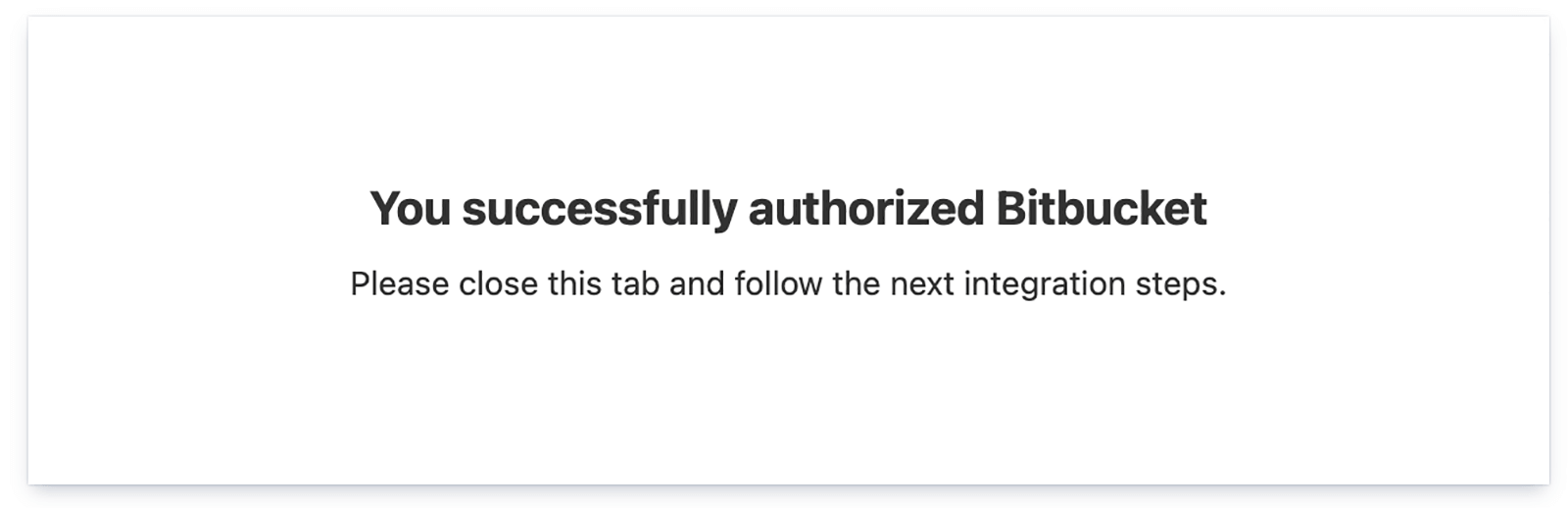

Once the integration is setup, close the tab.

Successful integration guide

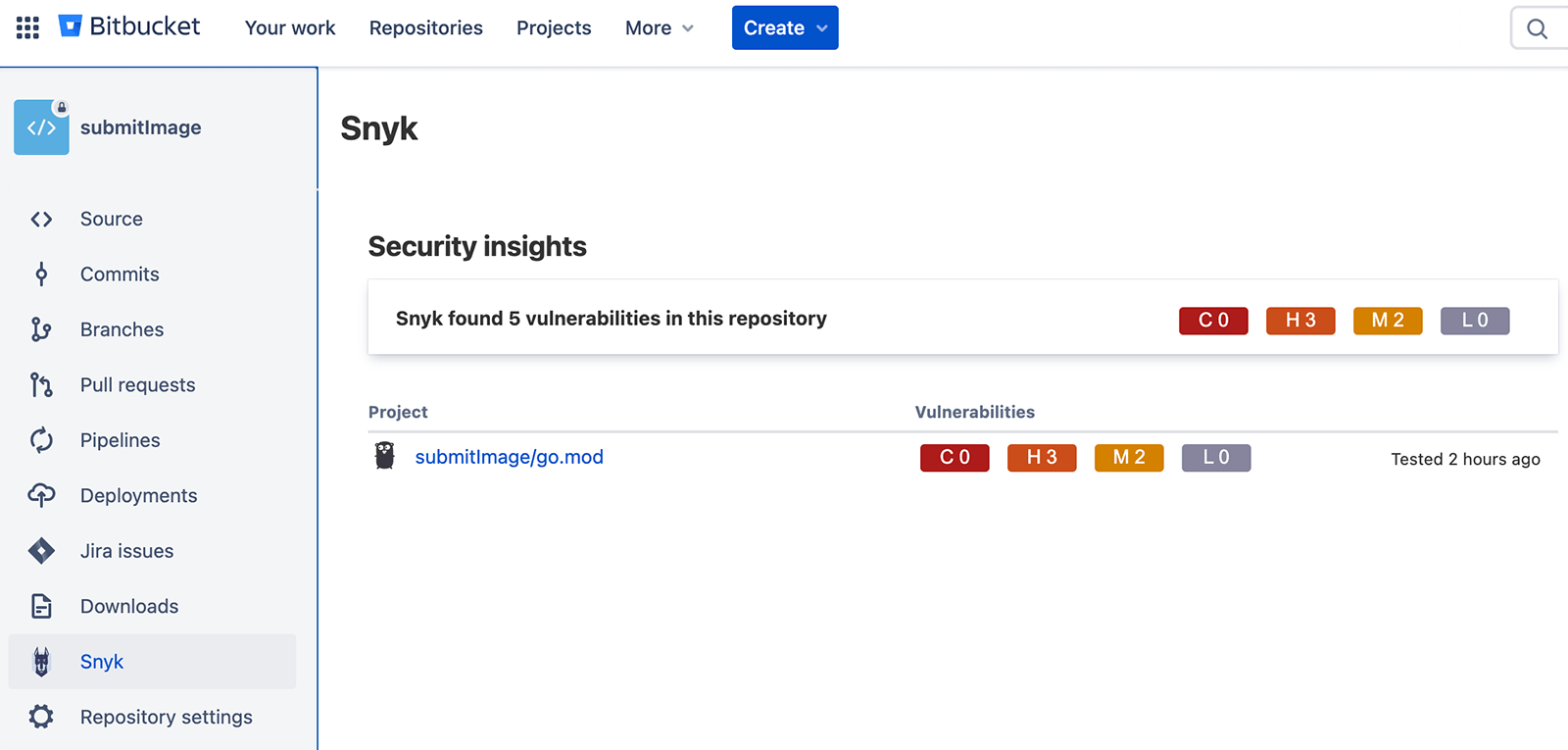

Click on the new Snyk option that appears in the left nav. Then click on the go.mod file to drill in to see more detailed information. The Golang repository uses go modules to manage dependencies in this example. For other kinds of repositories, there will be different dependency files.

Snyk screen

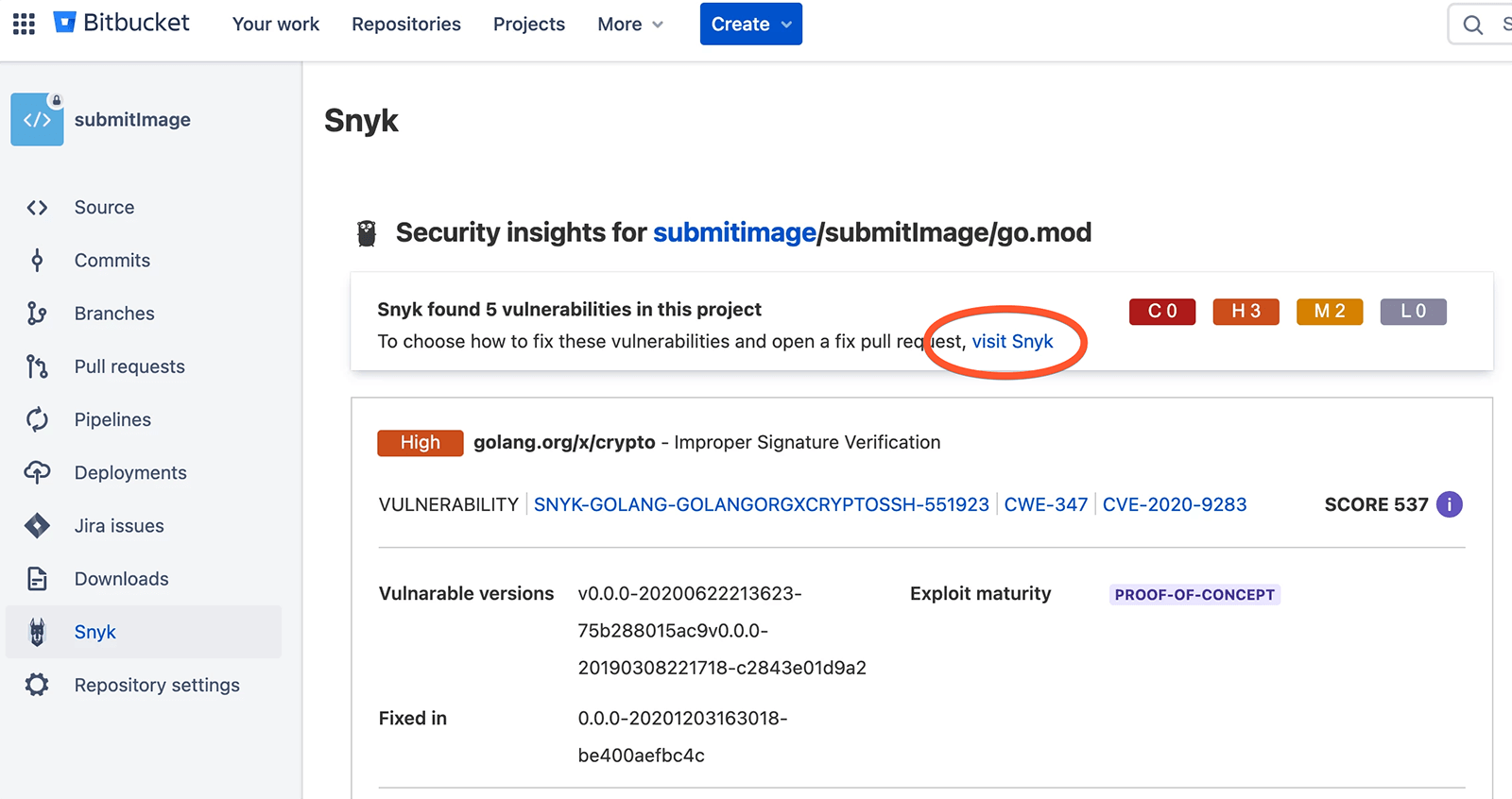

To learn more about how to fix each vulnerability, click visit Snyk to go to the Snyk website.

visit snyk

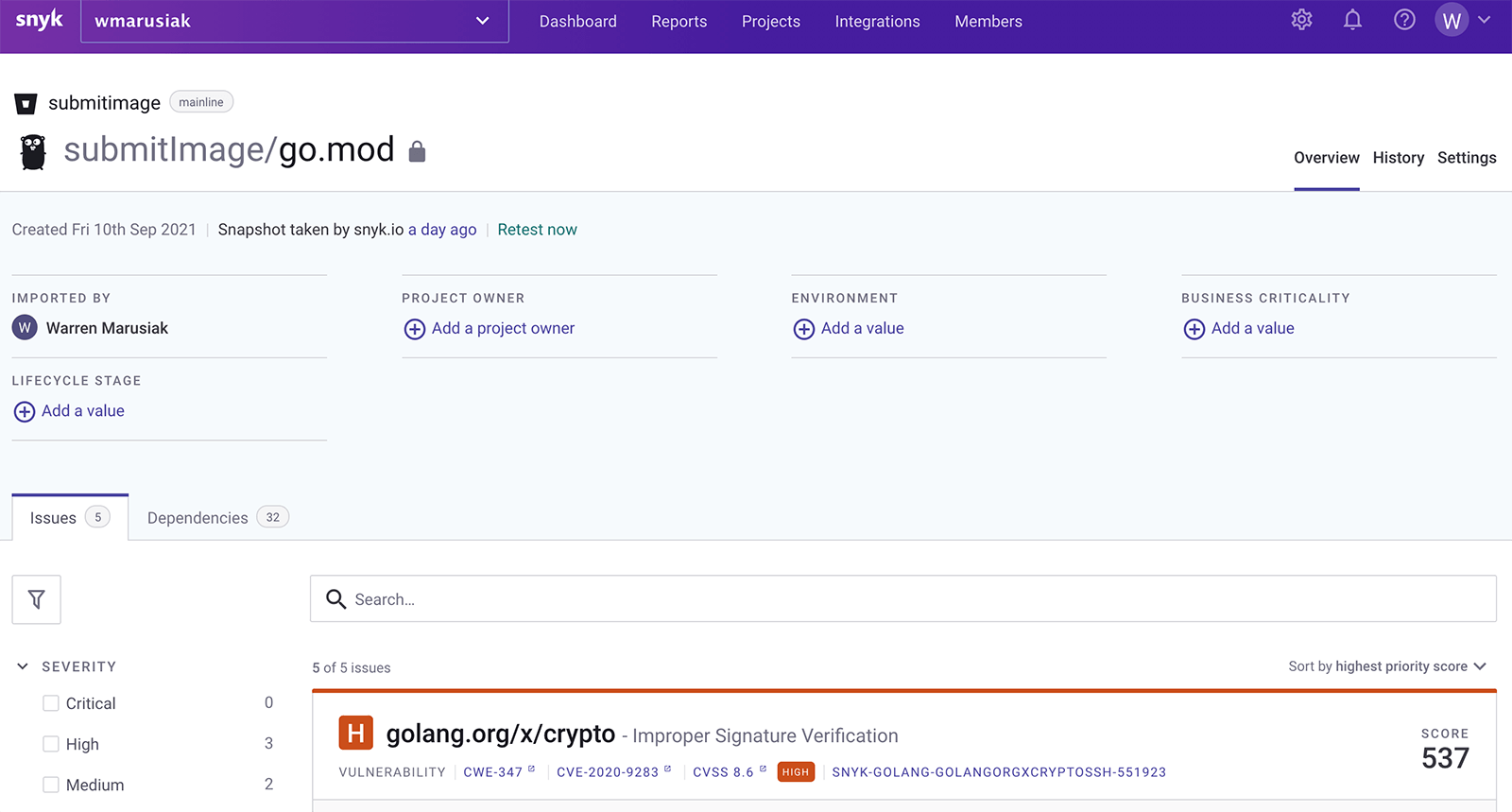

This view on the Snyk app is similar to the detail screen rendered in Bitbucket. This screen shows a list of vulnerabilities, along with additional information on each vulnerability.

Snyk website screentshot

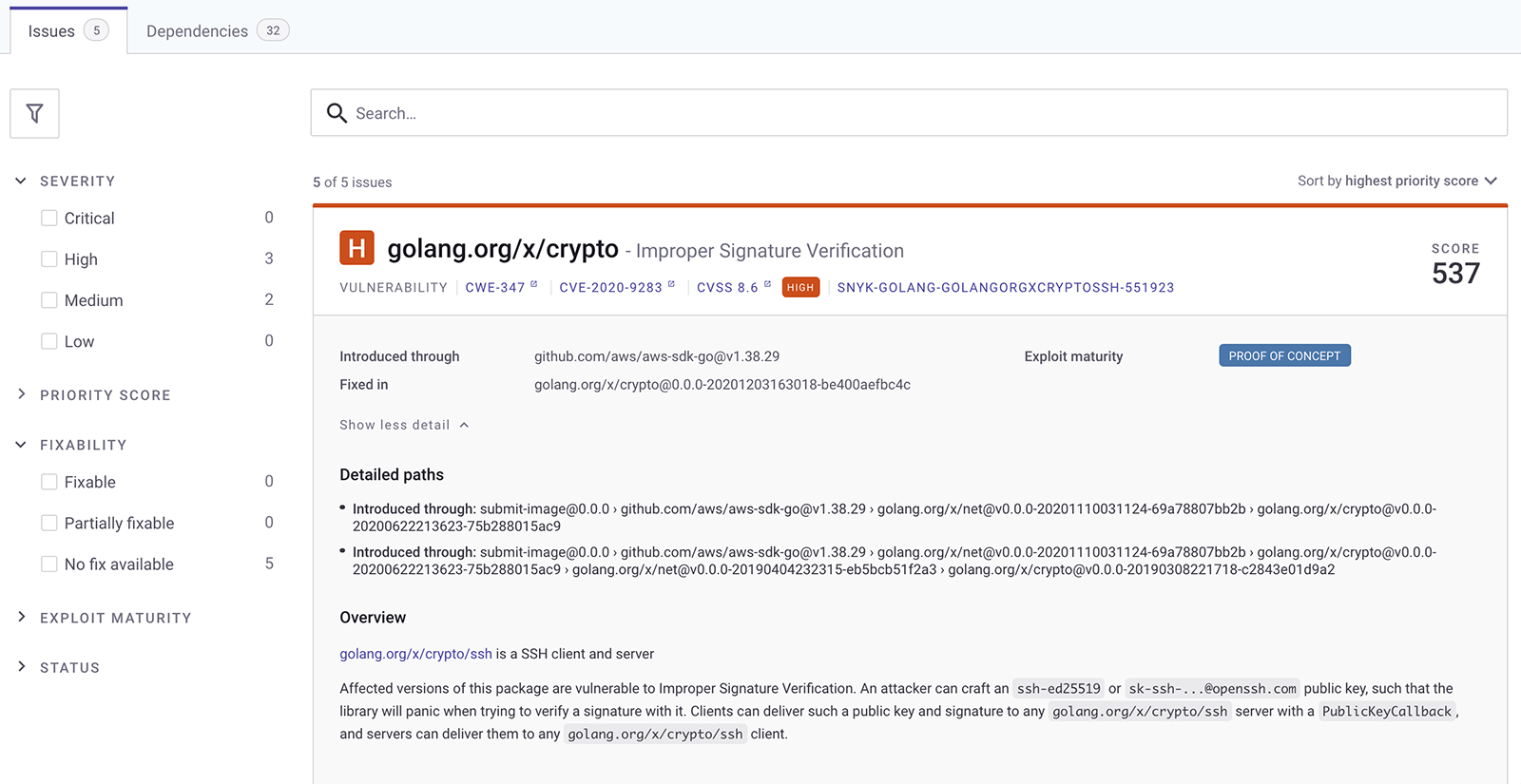

Below is an example of a vulnerability report in Snyk. A hierarchy of where the vulnerability comes from is shown in the Detailed paths section. In the example below, you can see that SubmitImage inherits this vulnerability from the AWS Golang SDK. Snyk summarizes the status of all issues on the left. in this case, none of the issues are fixable. Notice there are five No fix available issues under Fixability. This means that there is no current mitigation available for these issues. Developers can monitor the integration, and apply fixes as soon as they are available.

Vulnerability Details screenshot

Add a Snyk step to bitbucket-pipelines.yml

In addition to accessing Snyk via the Bitbucket user interface, Snyk functionality can be accessed via Bitbucket pipelines by adding steps to bitbucket-pipelines.yml files. This means that vulnerability scanning will take place automatically on every commit and alert you of any security vulnerabilities.

Below are two bitbucket-pipelines.yml snippets for running Snyk tests as part of a pipeline.

Adding Snyk to Bitbucket pipelines for Golang

This example illustrates how to run snyk test for a Golang project using Go modules for dependency management.

definitions:
  steps:
    -step: &runsnyktest
        name: run snyk test
        image: snyk/snyk:golang
        script:
          - snyk auth $SNYK_TOKEN
          - cd submitImage
          - go mod graph
          - snyk test
pipelines:
  default:
    - step: *runsnyktest

Adding Snyk to Bitbucket pipelines for Python

This example illustrates how to run snyk test for a Python project using Pip for dependency management.

definitions:
  steps:
    -step: &runsnyktest
        name: run snyk test
        image: snyk/snyk:python
        script:
          - snyk auth $SNYK_TOKEN
          - cd src
          - snyk test --skip-unresolved
          - cd ../tst
          - snyk test --skip-unresolved
pipelines:
  default:
    - step: *runsnyktest

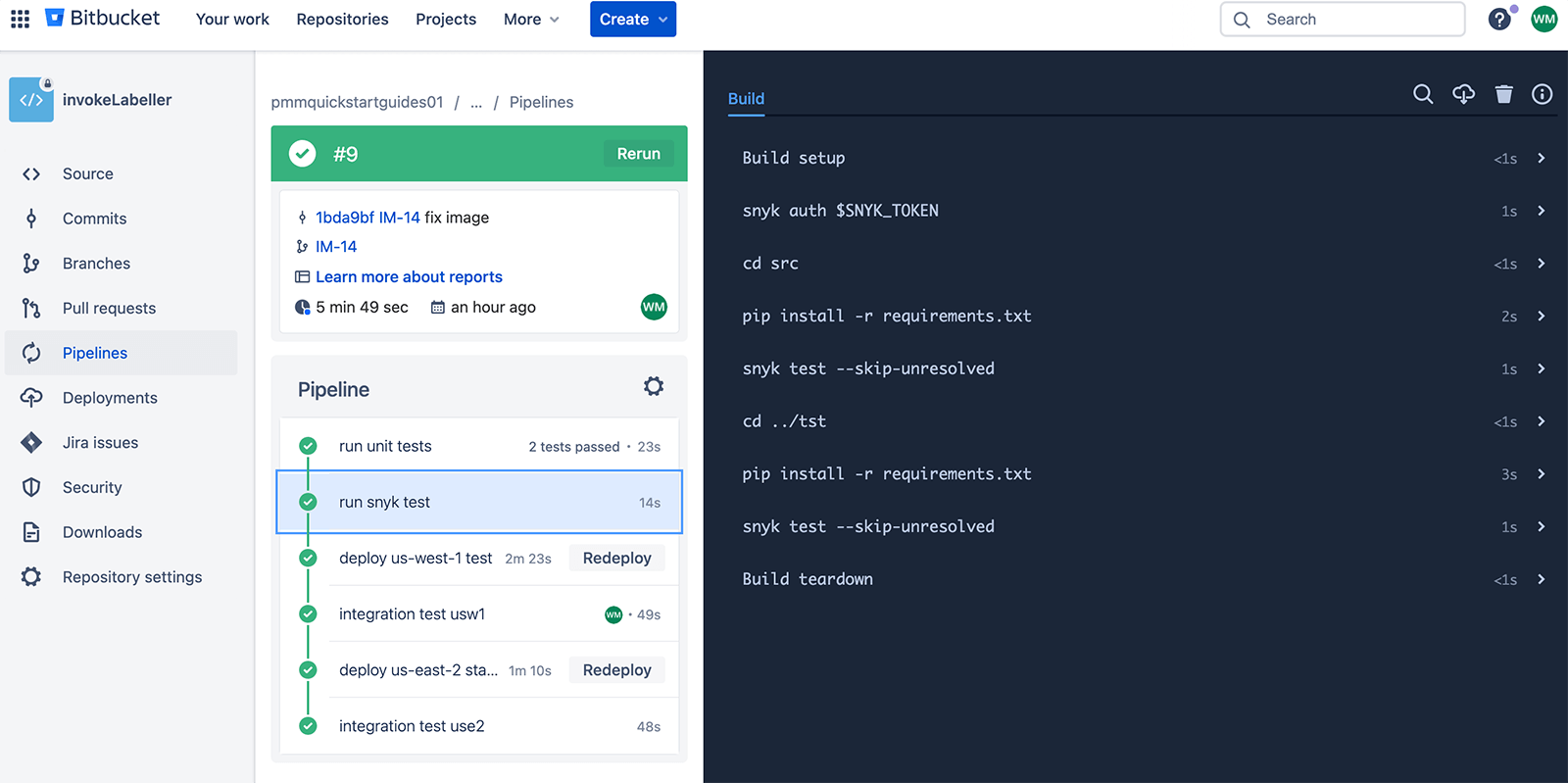

Here is what this looks like when the runsnyktest step is run in a Bitbucket pipeline.

runsnyktest step in Bitbucket pipeline

In conclusion...

The practice of integrating security into your CI/CD pipeline is a core tenet of DevSecOps. DevSecOps advocates that security should be applied to each phase of the typical DevOps pipeline: plan, code, build, test, release, and deploy. By incorporating security into your workflow, it becomes an active, integrated part of the development process vs an afterthought. This means safer apps, fewer incidents, and happier customers.
